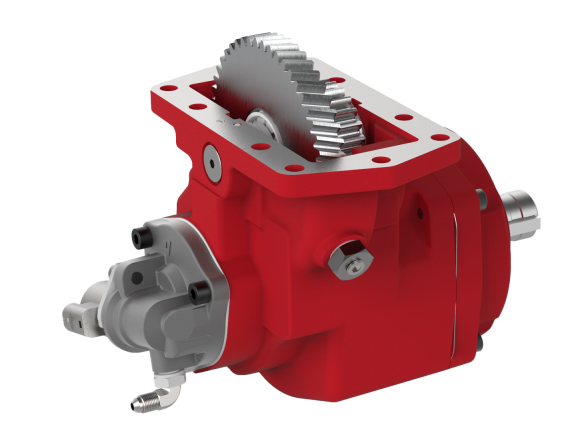

18SW-256008 HYDRAULICS PTO UNIT 10-BOLT AUTO SHIFT

The 256 Series features electric-over-hydraulic shifting, designed for a wide range of applications. With an intermittent torque rating of 301–400 lb-ft, it offers reliable performance and full interchangeability with many competitive models. It is specifically engineered to fit Allison 3000 and 4000 series transmissions.

  • 18SW-256008 HYDRAULICS PTO UNIT  10-BOLT AUTO SHIFT

Description

▌Technical Specifications
Electric-over-hydraulic powershift, compatible with Allison 3000/4000 series transmissions
Intermittent torque 301–400 lb‑ft, continuous torque up to 390 ft‑lbs
Rugged cast‑iron construction with rotable flanges for flexible installation
Fully interchangeable with competitive models, supports continuous operation
Ideal for oil & gas, cranes, waste management, fire & rescue and specialty vehicles

▌Part Interchanges
Chelsea 277XMFJFB5XD S&S Truck Parts NS10R7JFPE5DS Bezares USA 31000PJEE633SE
Chelsea 277XMFJP-B5XD S&S Truck Parts S-17106 Bezares USA 32550PJEE633SE
Chelsea 280GMFJP-B5XD World American WA105DR4KL-ZLFRM Bezares USA 32552PMEE633SE
Muncie CS205A1008H3BL World American WA10SDRKL-2LFRM Hydraulix Global MHS10SSM63PE
Muncie CS20A1010H3BX World American WA772XMFJP-B5XD
Muncie CS24A1010H3BX World American WAS10SM63PE3SE
