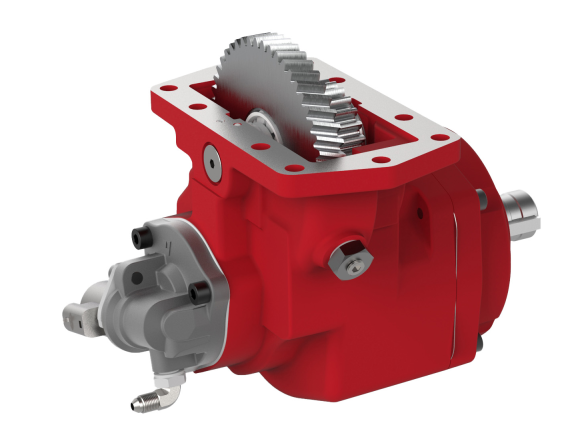

18SW-256007 HYDRAULICS PTO UNIT 10-BOLT AUTO SHIFT

The 256 Series features electric-over-hydraulic shifting, designed for a wide range of applications. With an intermittent torque rating of 301–400 lb-ft, it offers reliable performance and full interchangeability with many competitive models. It is specifically engineered to fit Allison 3000 and 4000 series transmissions.

  • 18SW-256007 HYDRAULICS PTO UNIT  10-BOLT AUTO SHIFT

Description

▌Technical Specifications
Electric-over-hydraulic powershift, compatible with Allison 3000/4000 series transmissions
Intermittent torque 301–400 lb‑ft, continuous torque up to 390 ft‑lbs
Rugged cast‑iron construction with rotable flanges for flexible installation
Fully interchangeable with competitive models, supports continuous operation
Ideal for oil & gas, cranes, waste management, fire & rescue and specialty vehicles

▌Part Interchanges
Chelsea 277XGFJP-B5XD S&S Truck Parts NS10R6JFPE5DS Bezares USA 3100PEE633SE
Chelsea 277XGFJPB5XD S&S Truck Parts S-17146 Bezares USA 3100PEE633RA
Chelsea 280GGFJP-B5XD World American WA10SCRKL-2LFRM Bezares USA 32550PEE633SE
Muncie CS20A1007H3BX World American WA772XGFJP-B5XD Hydraulix Global MHS10SG63PE3SE
Muncie CS20SA1007H3BL World American WAS10SG63PE3SE
Muncie CS24A1007H3BX Bezares USA 3100PEE633SE
