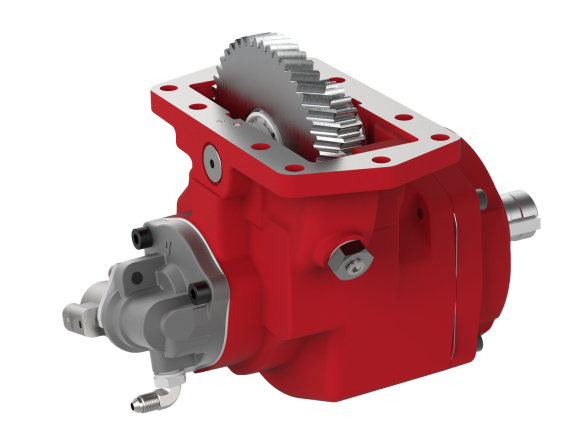

18SW-256006 HYDRAULICS PTO UNIT 10-BOLT AUTO SHIFT

The 256 Series features electric-over-hydraulic shifting, designed for a wide range of applications. With an intermittent torque rating of 301–400 lb-ft, it offers reliable performance and full interchangeability with many competitive models. It is specifically engineered to fit Allison 3000 and 4000 series transmissions.

  • 18SW-256006 HYDRAULICS PTO UNIT  10-BOLT AUTO SHIFT

Description

▌Technical Specifications
Electric-over-hydraulic powershift, compatible with Allison 3000/4000 series transmissions
Intermittent torque 301–400 lb‑ft, continuous torque up to 390 ft‑lbs
Rugged cast‑iron construction with rotable flanges for flexible installation
Fully interchangeable with competitive models, supports continuous operation
Ideal for oil & gas, cranes, waste management, fire & rescue and specialty vehicles

▌Part Interchanges
Chelsea 277XDFJP-B5XD S&S Truck Parts NS10R5JFPE5DS Bezares USA 3100PGE633SE
Chelsea 280GDFJP-B5XD World American WA10SBRKL-2LFRM Bezares USA 32550PGE633SE
Muncie CS20A1006H3BX World American WA772XDFJP-B5XD Bezares USA 32552PCE633SE
Muncie CS20SA1008H3BL World American WAS10SD63PE3SE Hydraulix Global MHS10SD63PE3SE
Muncie CS24A1006H3BX Bezares USA 3100PGE633SE
