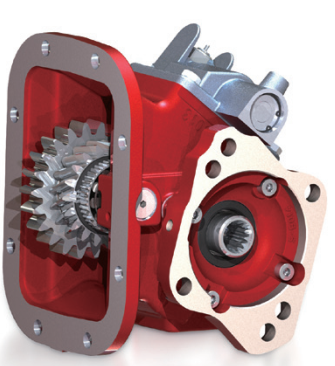

18SW-225016 PTO UNIT 8-BOLTS AIR SHIFT

The 256 Series features electric-over-hydraulic shifting, designed for a wide range of applications. With an intermittent torque rating of 301–400 lb-ft, it offers reliable performance and full interchangeability with many competitive models. It is specifically engineered to fit Allison 3000 and 4000 series transmissions.

  • 18SW-225016 PTO UNIT 8-BOLTS AIR SHIFT

Description

▌Technical Specifications
8-bolt design for easy installation, compatible with Eaton Fuller, Tremec, Mack and most manual transmissions
Cast iron housing & flange with heavy-duty bearings for superior durability
Air-shift controlled, complete kit for easy maintenance
Multiple gear ratios and output options for wide application
Suitable for utility trucks, dump trucks, fire & rescue, snow equipment and more

▌Part Interchanges
Chelsea 489GFAHX-A3AK S&S Truck Parts 825M5HAX-A3AL World American WA8JB01XA1SD
Chelsea 489GFAHX-A3RA S&S Truck Parts 825M5HAXA3AL World American WA984GFAHX-A3XK
Chelsea 489GFAHX-A3RB S&S Truck Parts S-10724 Bezares USA 2001XBA011RA
Chelsea 489GFAHX-A3SQ S&S Truck Parts S-20351 Bezares USA 2001XBA011SD
Chelsea 489GFAHX-A3XK World American WA08M3LIN-ARFDM Heavy Motions HM2M8XBA011RA
Chelsea 489GFAHX-A3XQ World American WA08M3LIX-ARFDM Heavy Motions HM589GFAHX-A3XK
Muncie TG8B-U6806-A1KX World American WA8GB01X-A1RA Hydraulix Global MH8GB01XA1RA
Muncie TG8B-U6806-A1SX World American WA8GB01XA1RA Hydraulix Global MH8GB01XA1SD
Muncie TG8BU6806A1KX World American WA8GB01XA1SD Hydraulix Global MH8JB01XA1RA
World American WA8JB01XA1RA Hydraulix Global MH8JB01XA1SD
